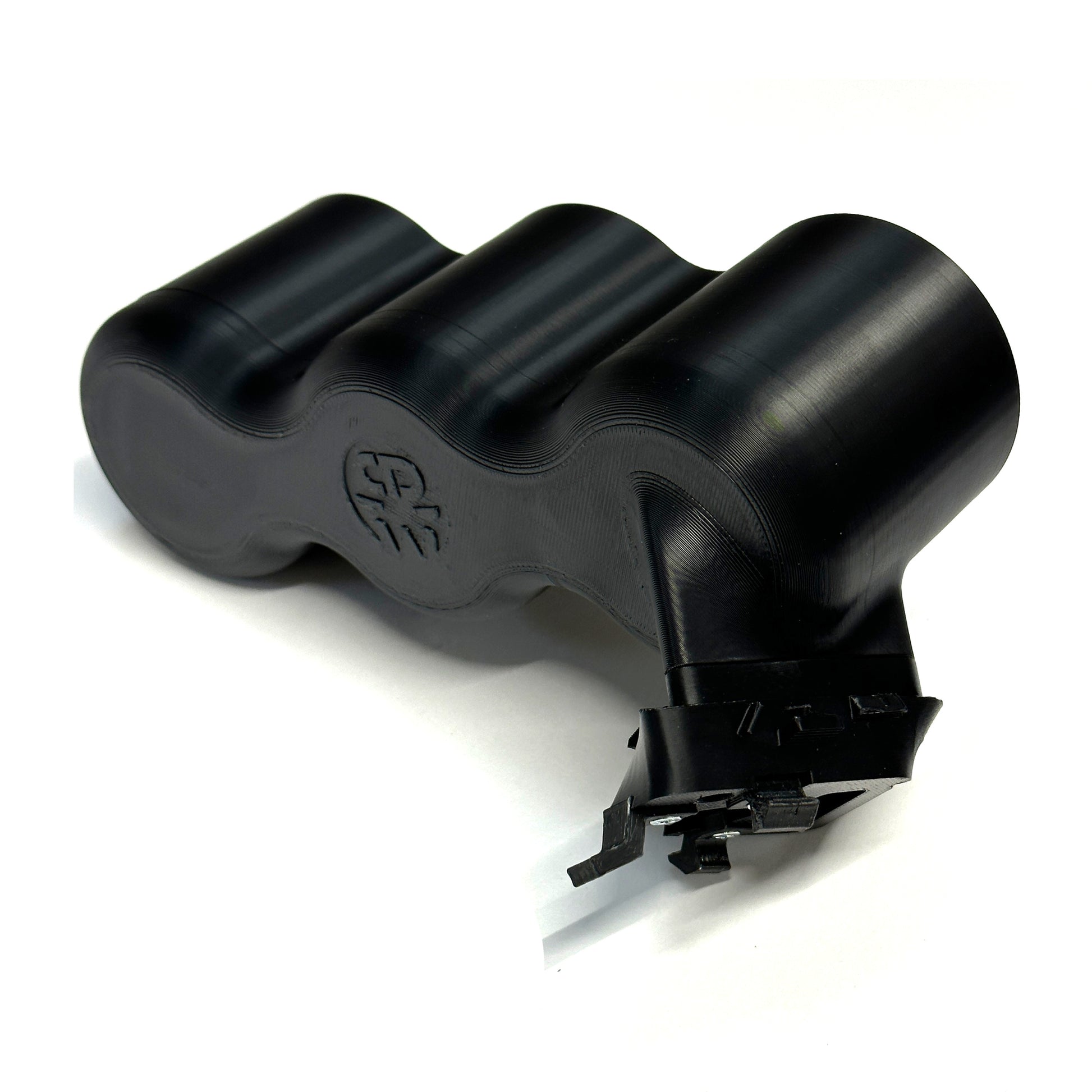

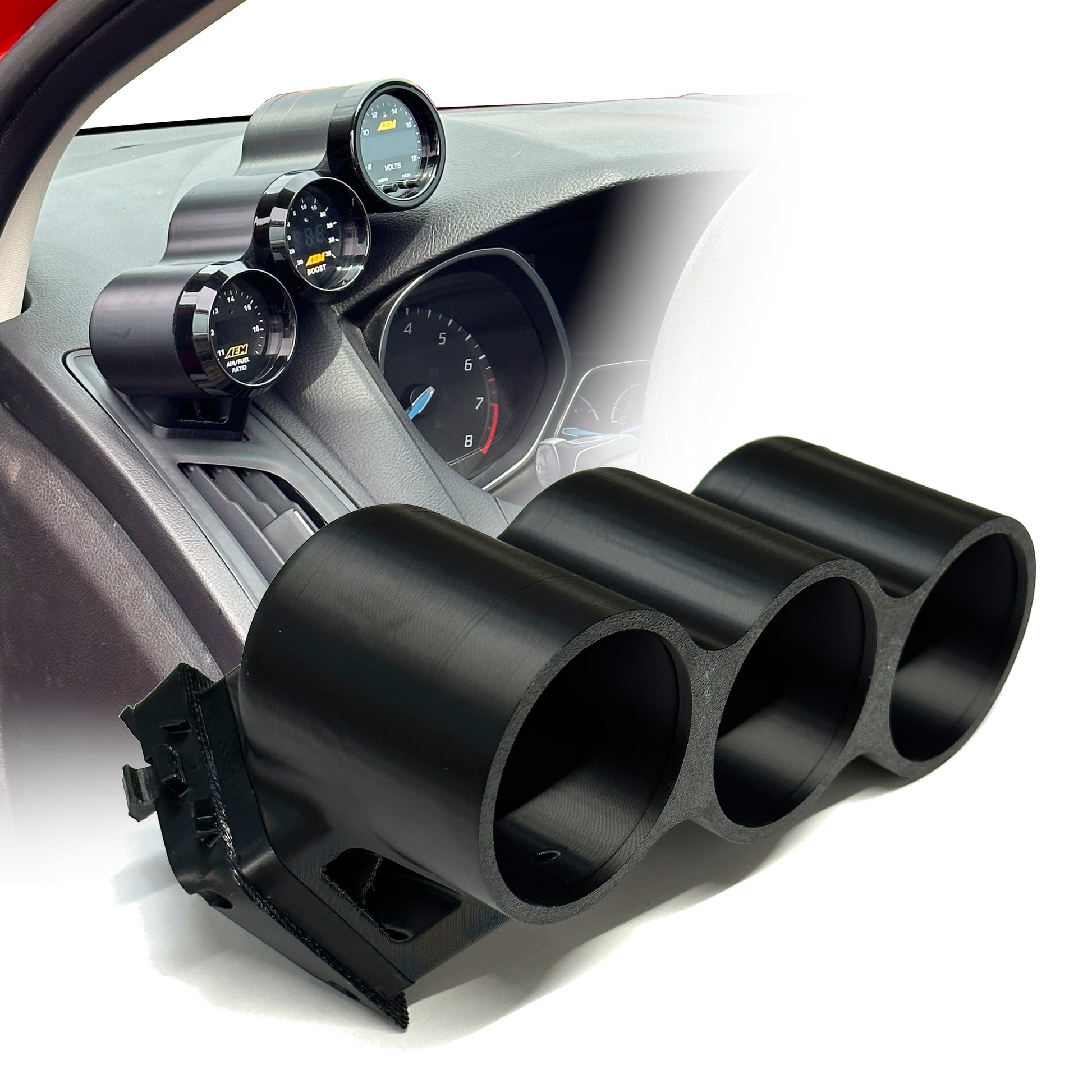

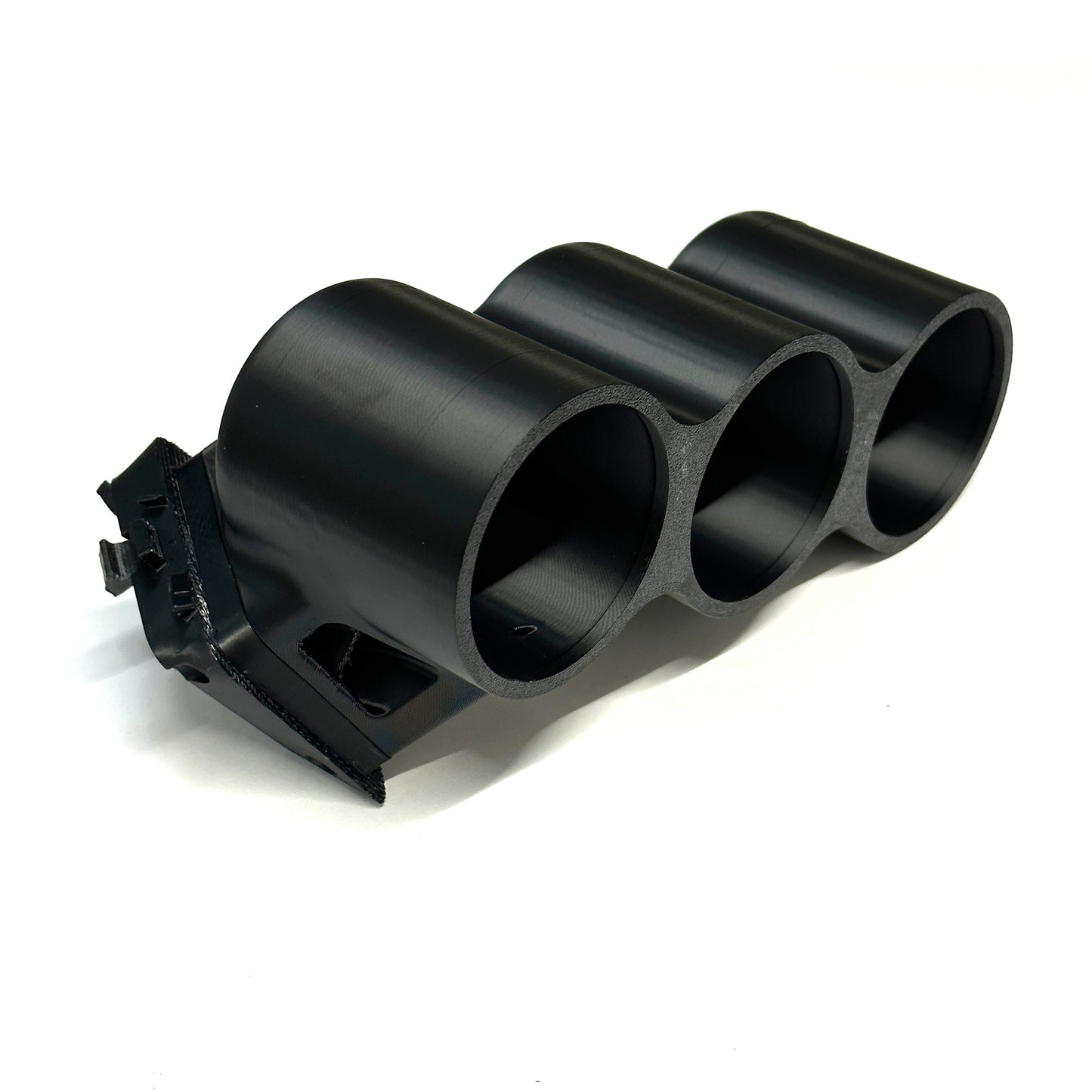

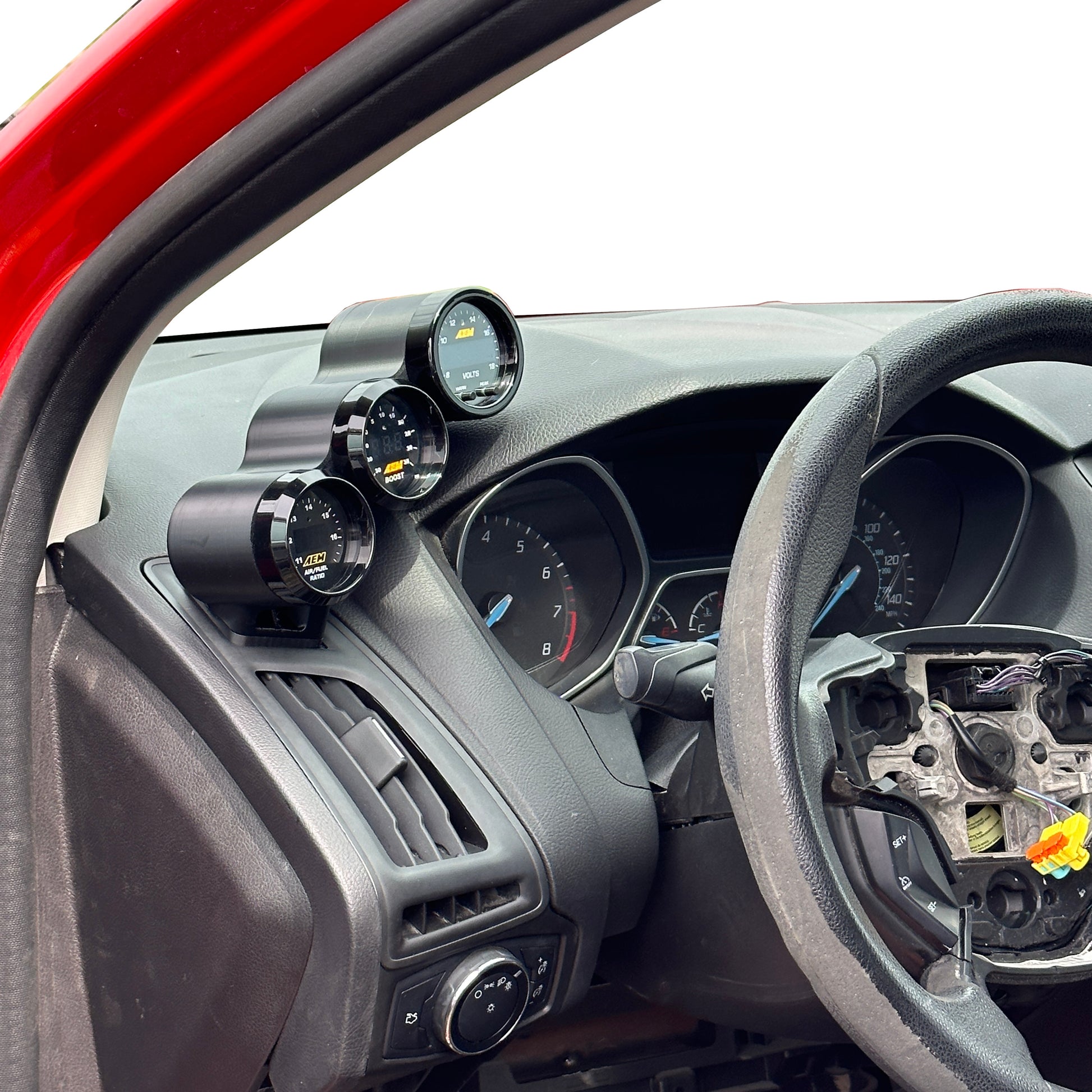

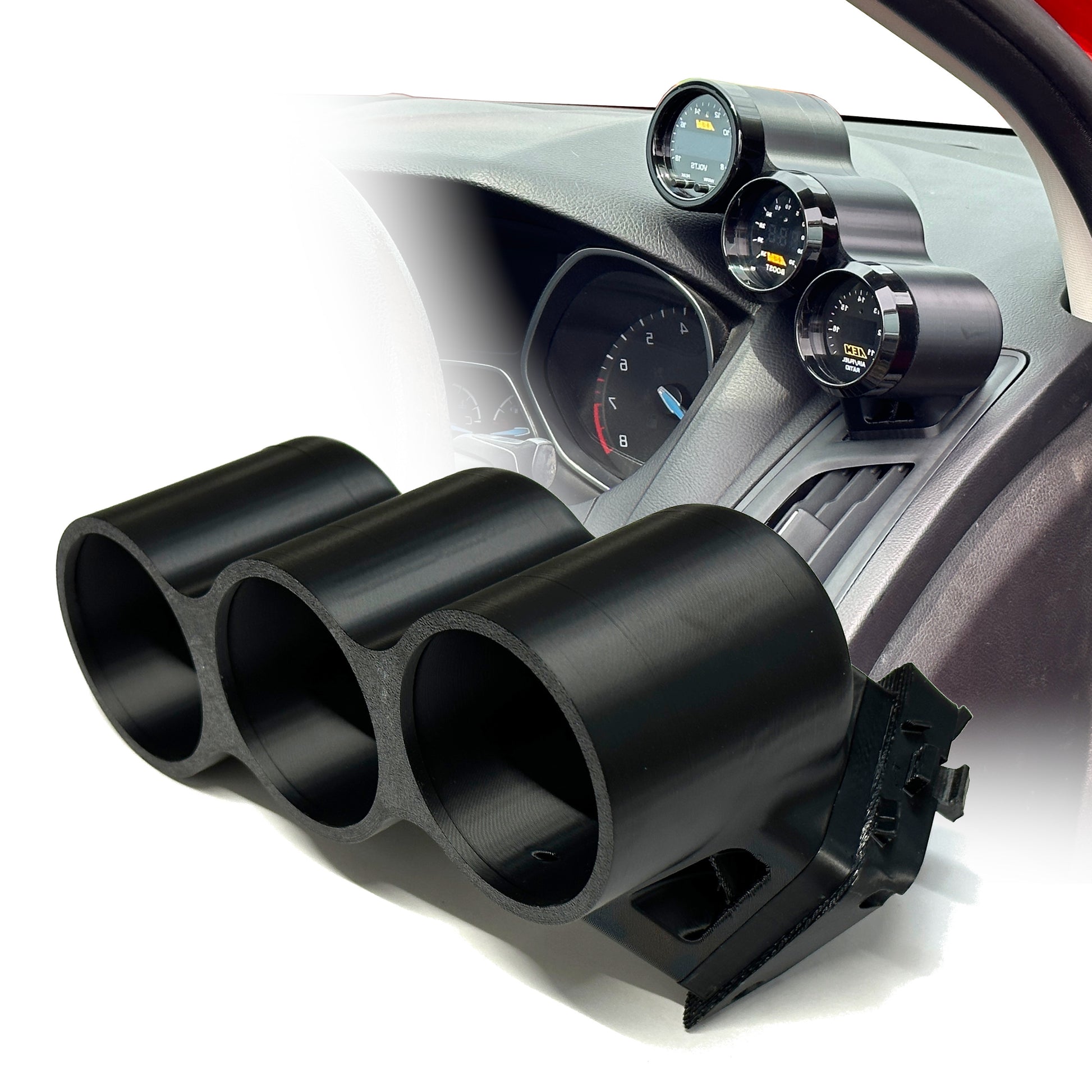

Triple gauge pod mount for 2012-2018 Focus ST RS functional defrost vent
Regular price
$65.00 USD
Regular price
Sale price
$65.00 USD
Unit price
per
Couldn't load pickup availability
Mount any 52mm performance gauge in this custom gauge pod holder Designed specifically for your Focus. This gauge pod is one of the easiest, simplest, and cleanest ways to monitor your vehicle's performance.
Features:
- Viewing Angled To Driver.
- Functional factory Vent.
- Secure OEM Install.
- Incorporated Wiring access port.
- Gauge install foam secure strips Included.
Specs:
- Pod Depth: 55mm
- Pod Inside Diameter: 53mm
- Pod outside diameter: 61mm
- Material: ABS (3D Printed)
- Interior heat resistance: 212°F (100°C)
Compatibility:
- 2012-2018 Focus
Install instructions:
1. Remove vent from vehicle using T25 tool

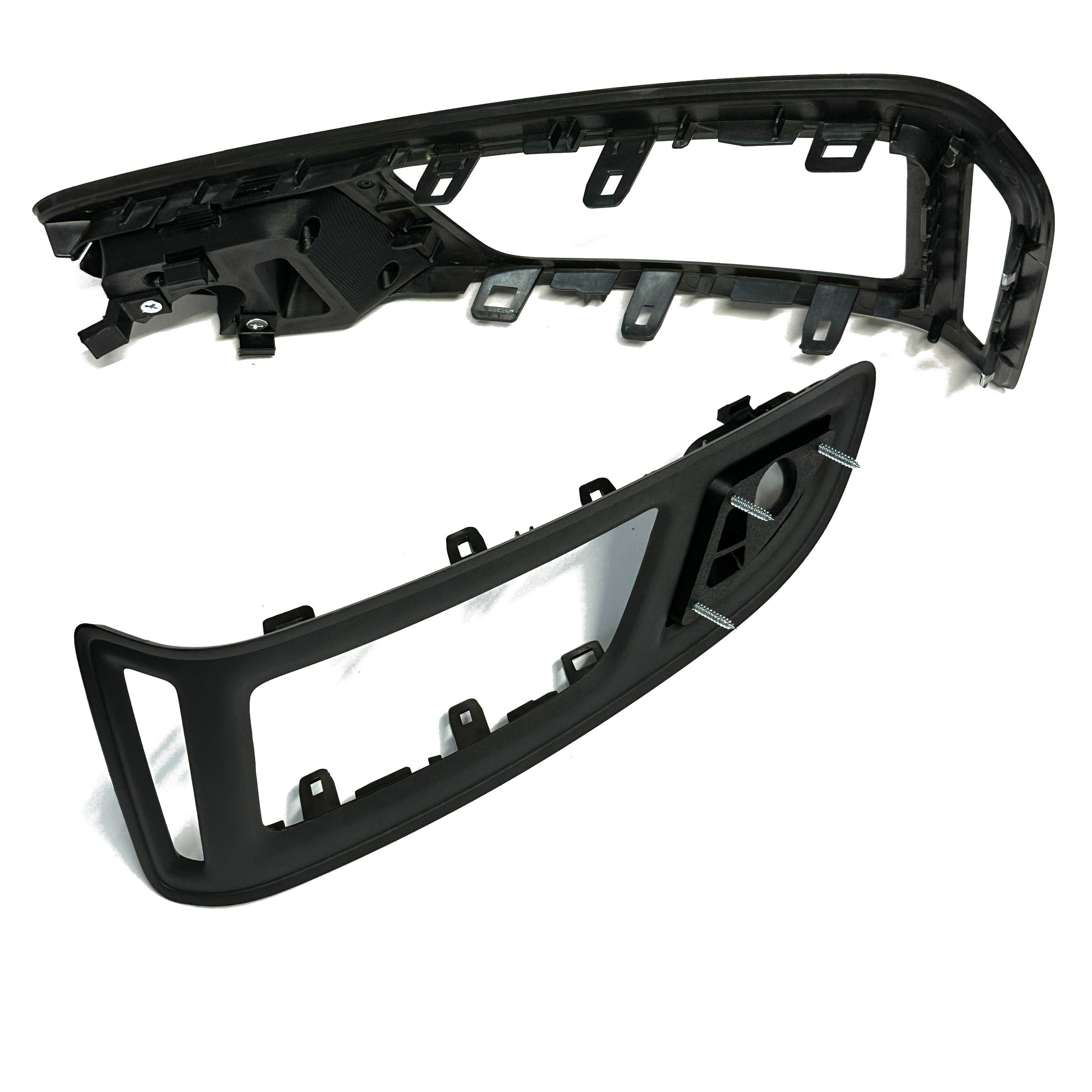

2. Remove outer vent bezel taking care not to snap off small legs.
3. Remove defrost vent from bezel

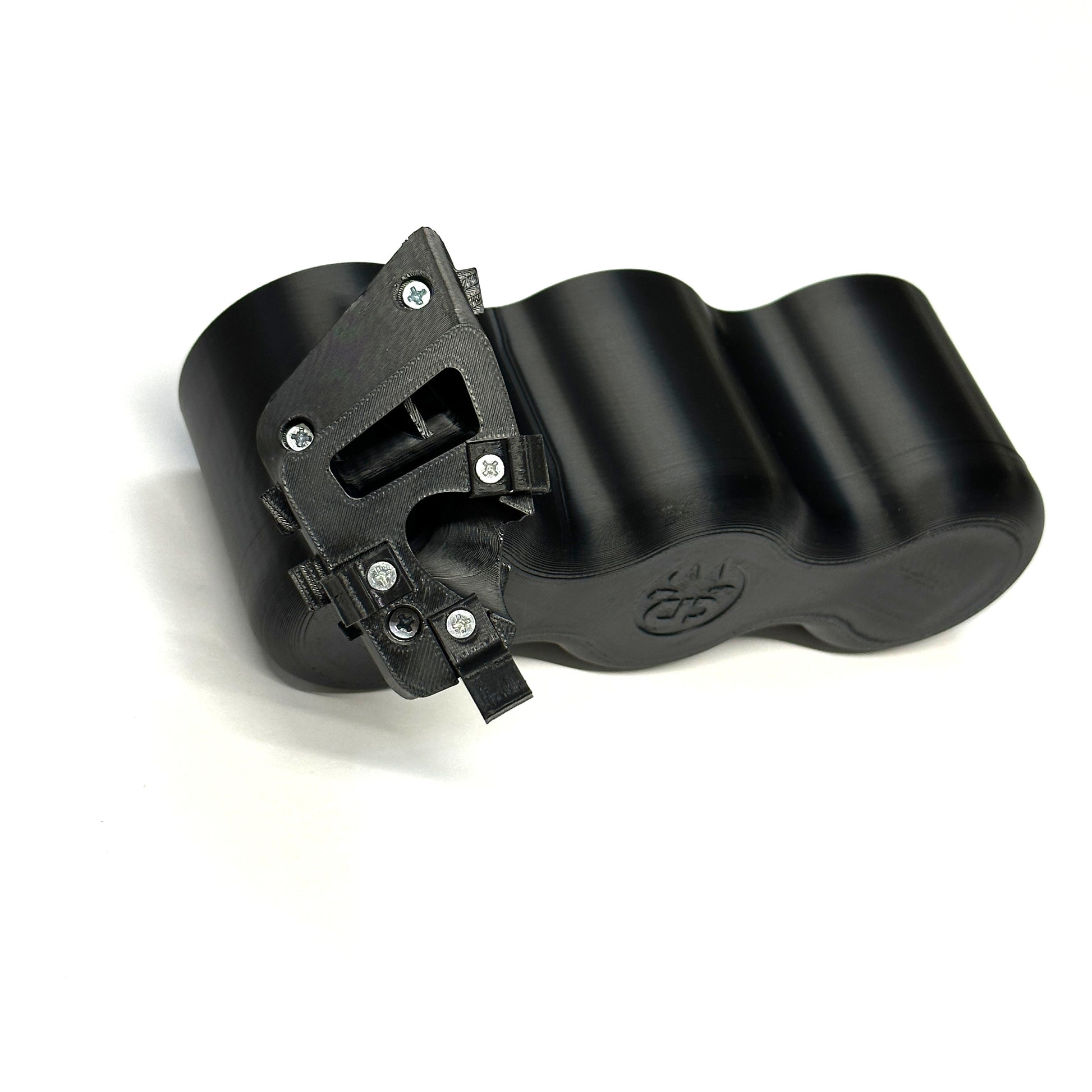

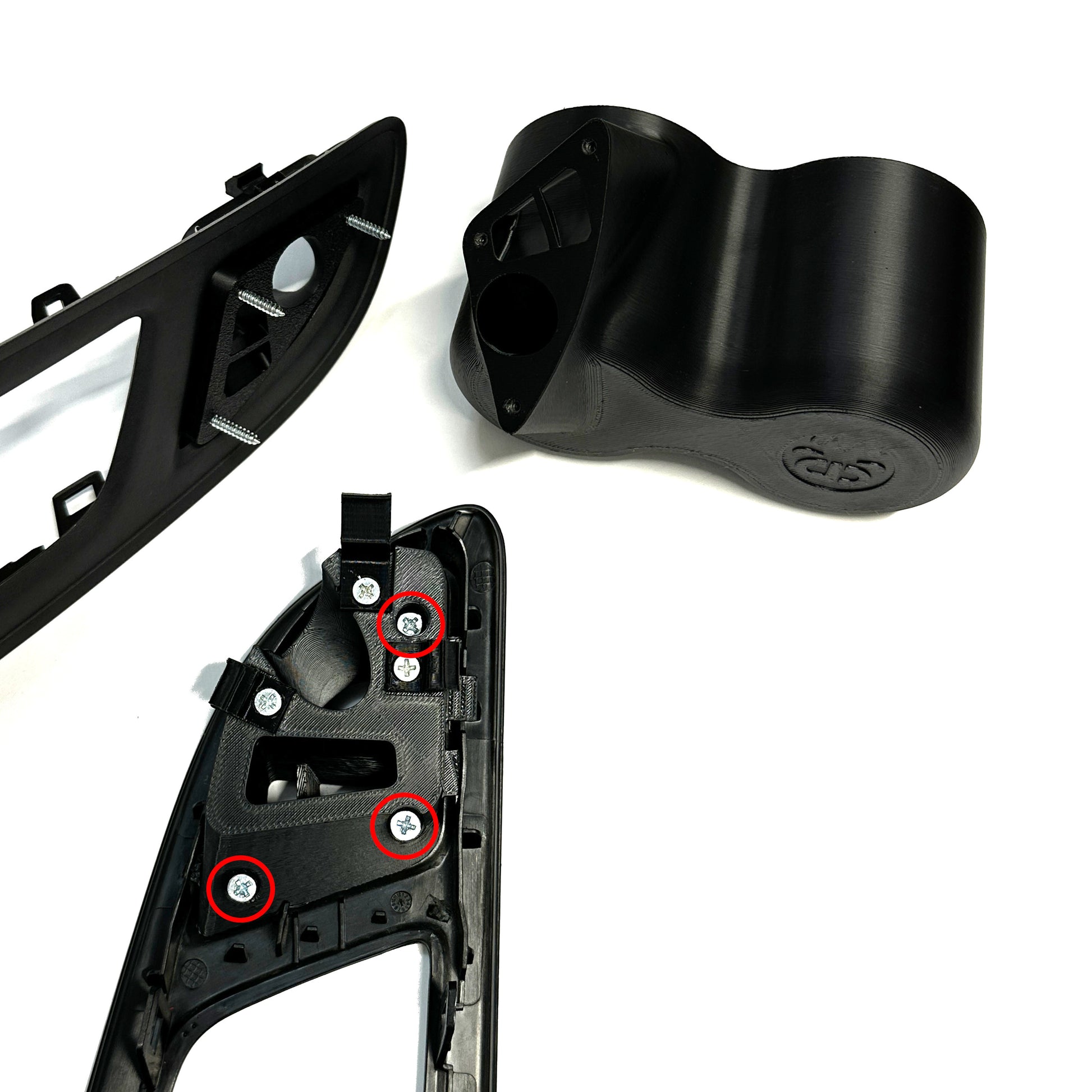

4. Remove pod from bottom half of product by unscrewing the 3 recessed screws as indicated in photo.
5. Replace defrost vent with bottom half of product.
6. Re-install screws to hold top half of pod in place.
7. You will need to drill a hole in upper vent duct to run gauge wires.
8. Replace the vent in vehicle after running necessary wires through the pods.
9. Replace T25 bolt
10. Replace cover panel.
DISPLAY GAUGES NOT INCLUDED.
FOR OFF-ROAD USE ONLY.
PRODUCT DESIGN PROTECTION: TRADEMARKED LOGO USPTO 98179892
UNAUTHORIZED REPRODUCTION OF THIS DESIGN IS PROHIBITED BY LAW 15 U.S.C. 1125(a)
